VOR ANTENNA

CANARD

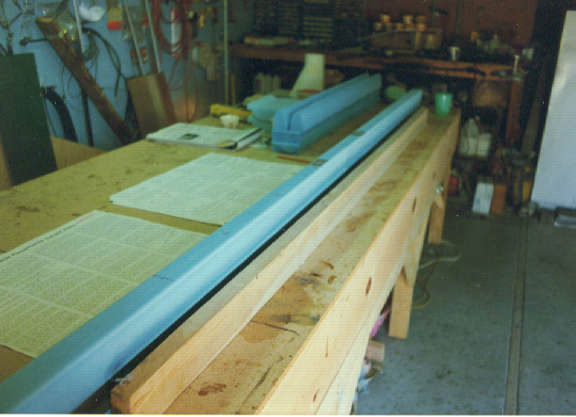

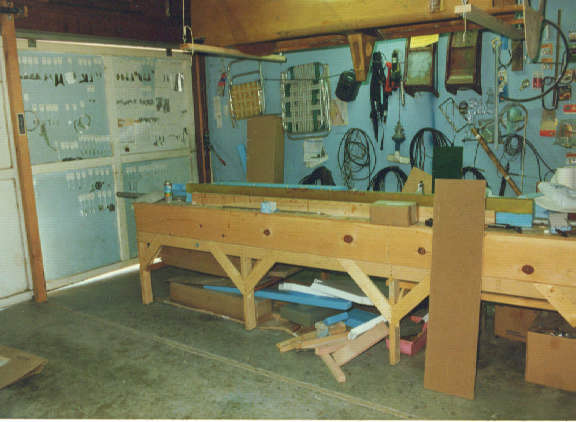

LongEZ Canard 073     LongEZ Canard 074     LongEZ Canard 075     LongEZ Canard 076

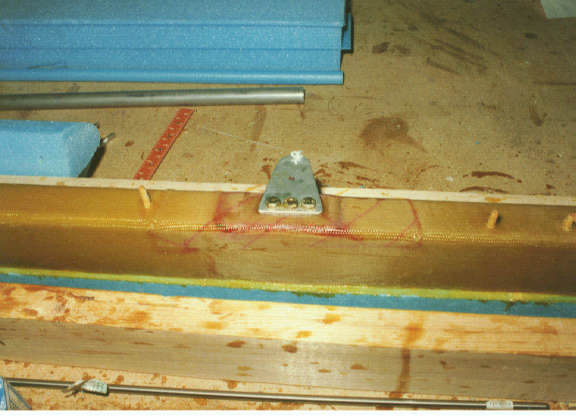

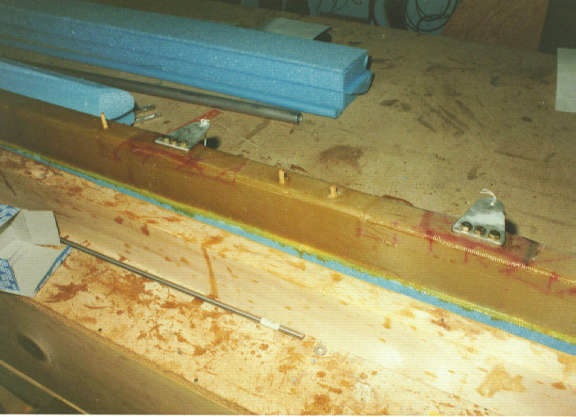

LongEZ Canard 077      LongEZ Canard 078     LongEZ Canard 079     LongEZ Canard 080

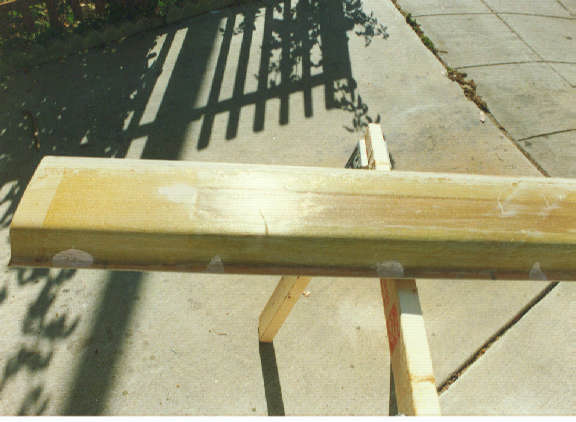

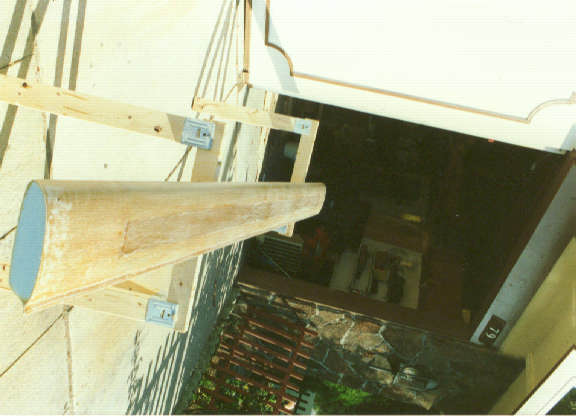

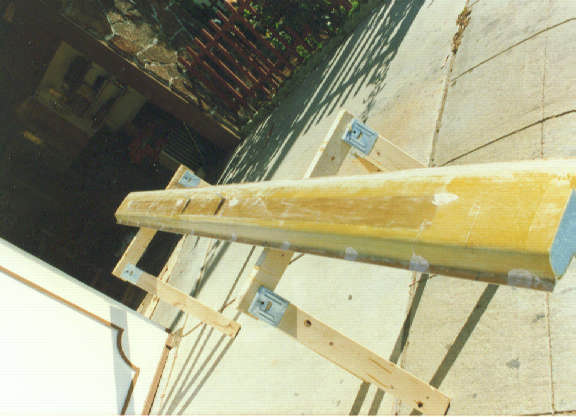

LongEZ Canard 081     LongEZ Canard 082      LongEZ Canard 083     LongEZ Canard 084

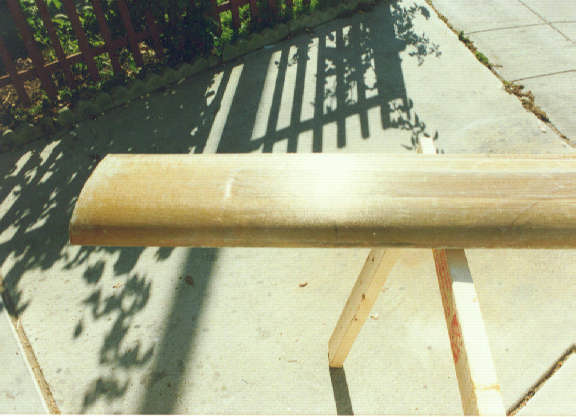

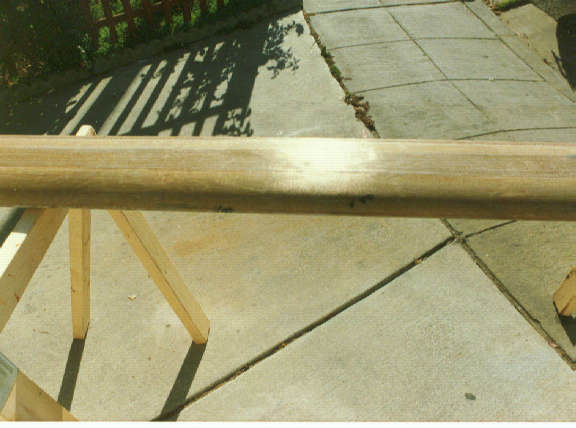

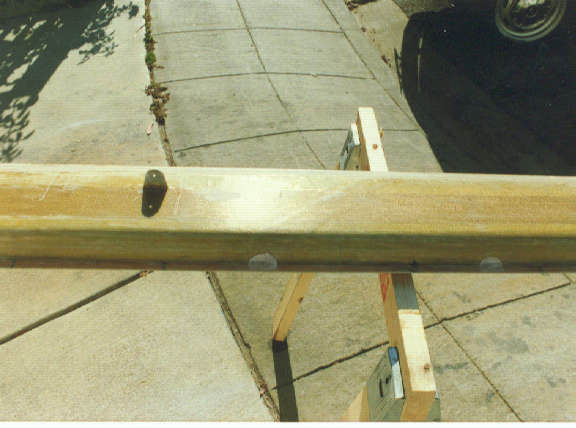

LongEZ Canard 085     LongEZ Canard 086     LongEZ Canard 087      LongEZ Canard 088

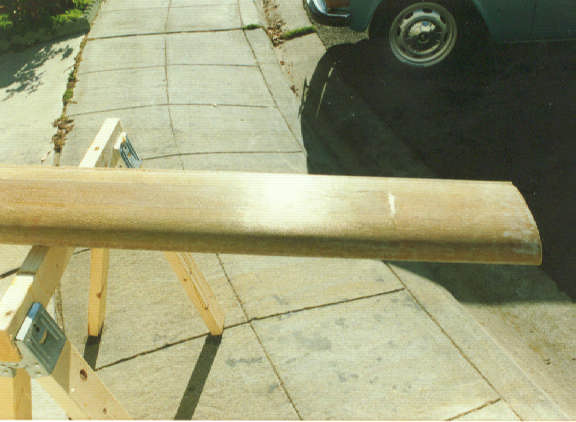

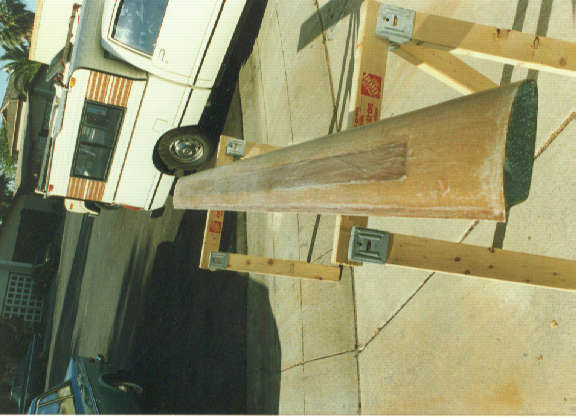

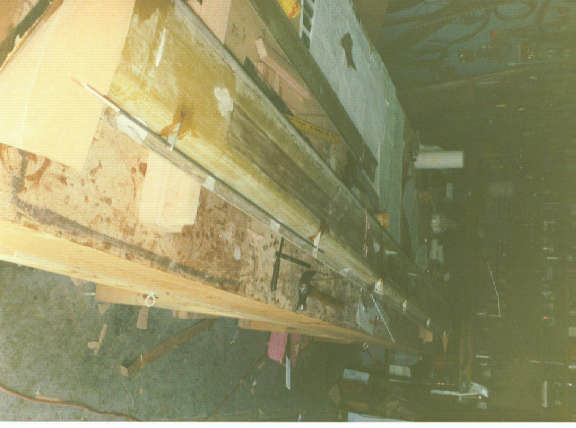

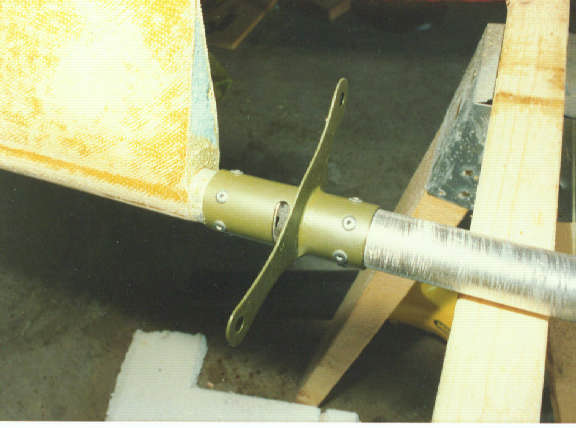

LongEZ Canard 089     LongEZ Canard 090     LongEZ Canard 091     LongEZ Canard 092

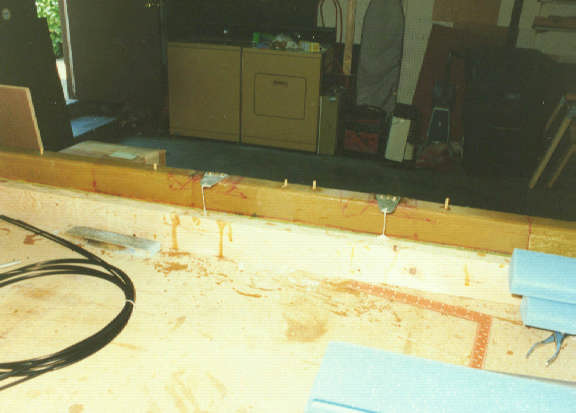

TOP

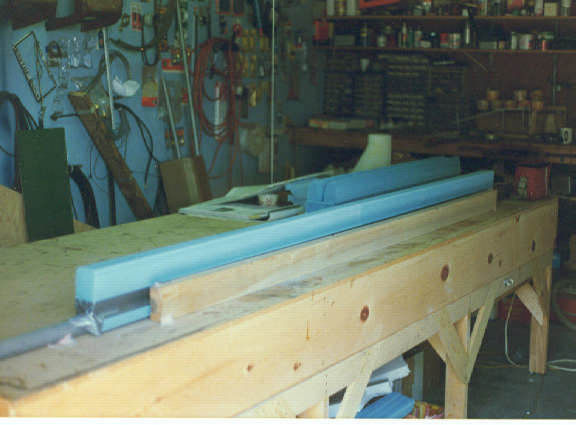

VOR ANTENNA

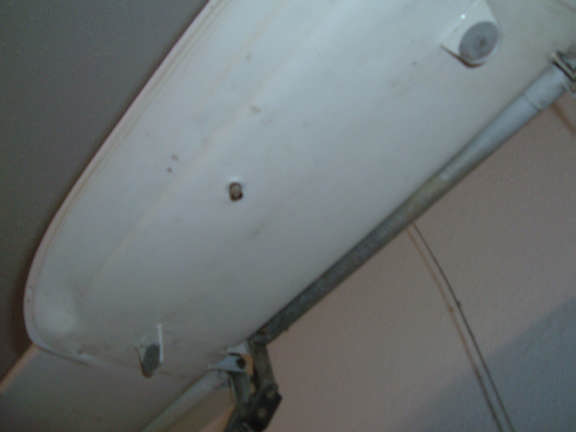

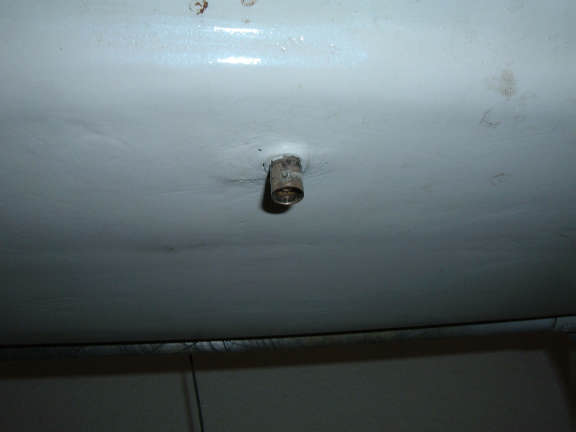

LongEZ Canard VOR Antennea 1 LongEZ Canard VOR Antennea 2

I did the VOR on the bottom of the canard after I made and installed the canard/fuselage cover piece.

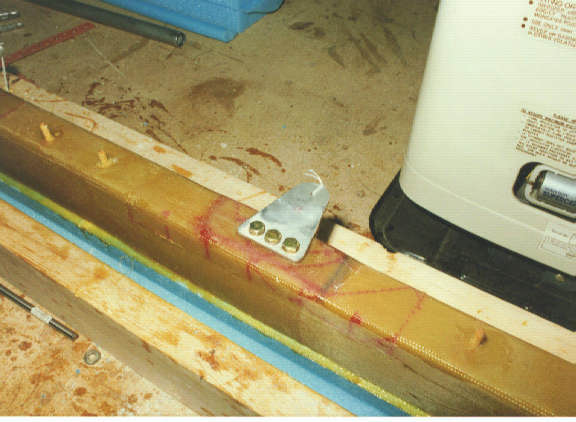

I dremeled out a small hole in the bottom of the canard where the BNC connecter would fit.

WARNING, DON"T DRILL INTO THE SPAR CAPS.

ALSO, Double check clearance of the connecter location with F22. :-(

I ran the foil tape from the small hole, out along the bottom surface of the canard (as per plans). I connected the foil (using small wires) to the BNC connector, then used FLOX to embed the BNC connector into the hole in canard. I then laid up a BID strip over the foil tape.

The foil tape can be purchased from several places, McMaster Carr sells it:

Part Number 76555A712 is a 1/2 inch wide by 6 yards (18 ft) roll. Cost $11.17

Waiter
